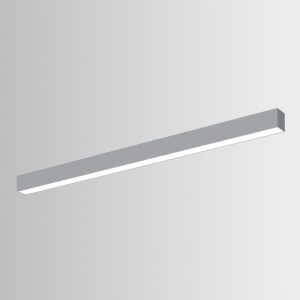

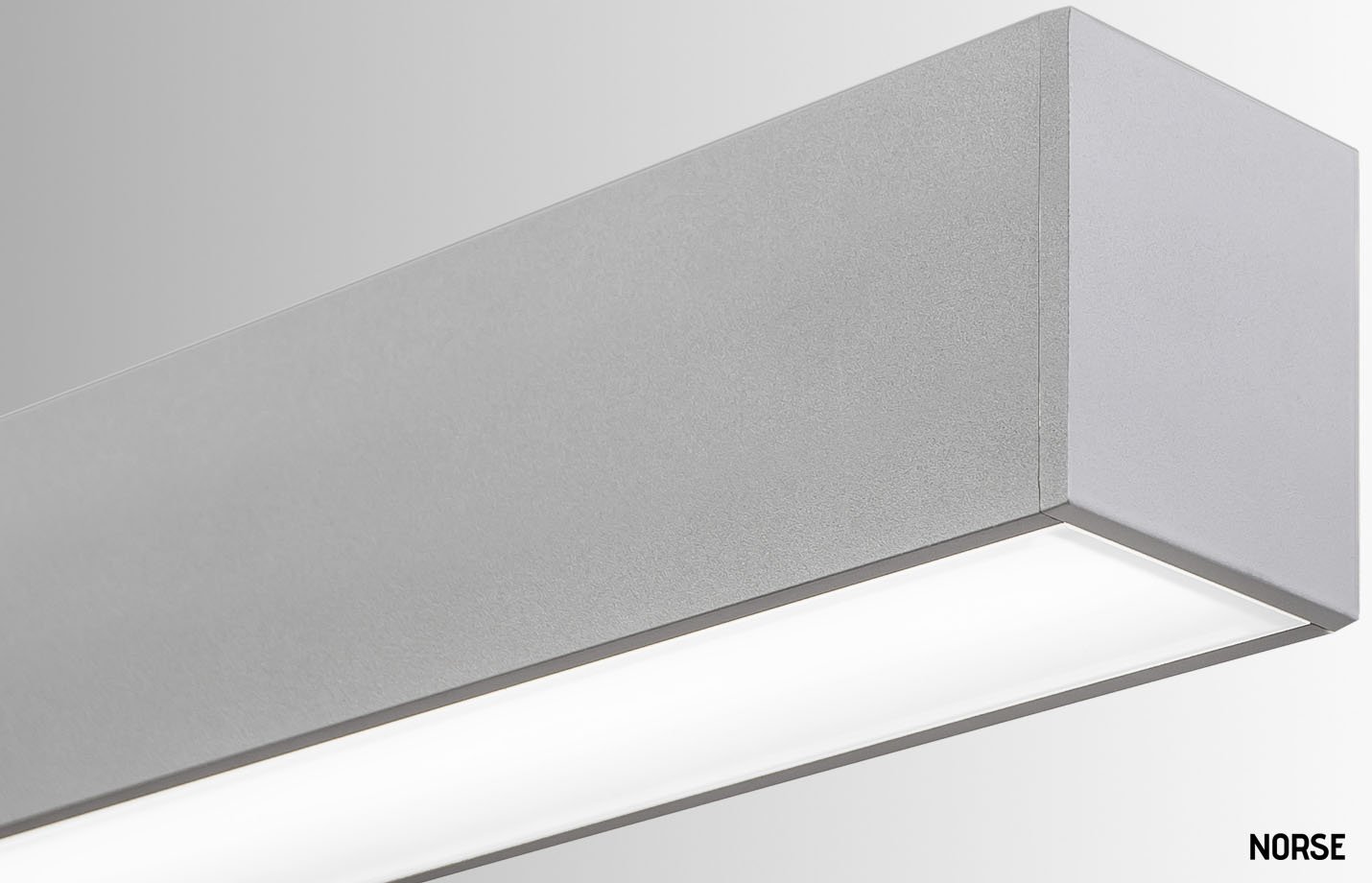

Jesse Series Surface Linear Light

  • Continuous direct, extruded linear profile system
  • Features through wiring for simple electrical connection

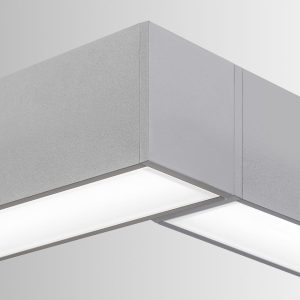

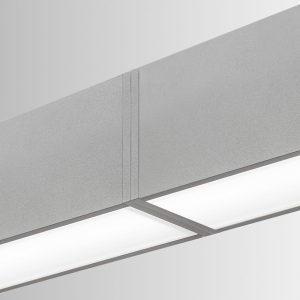

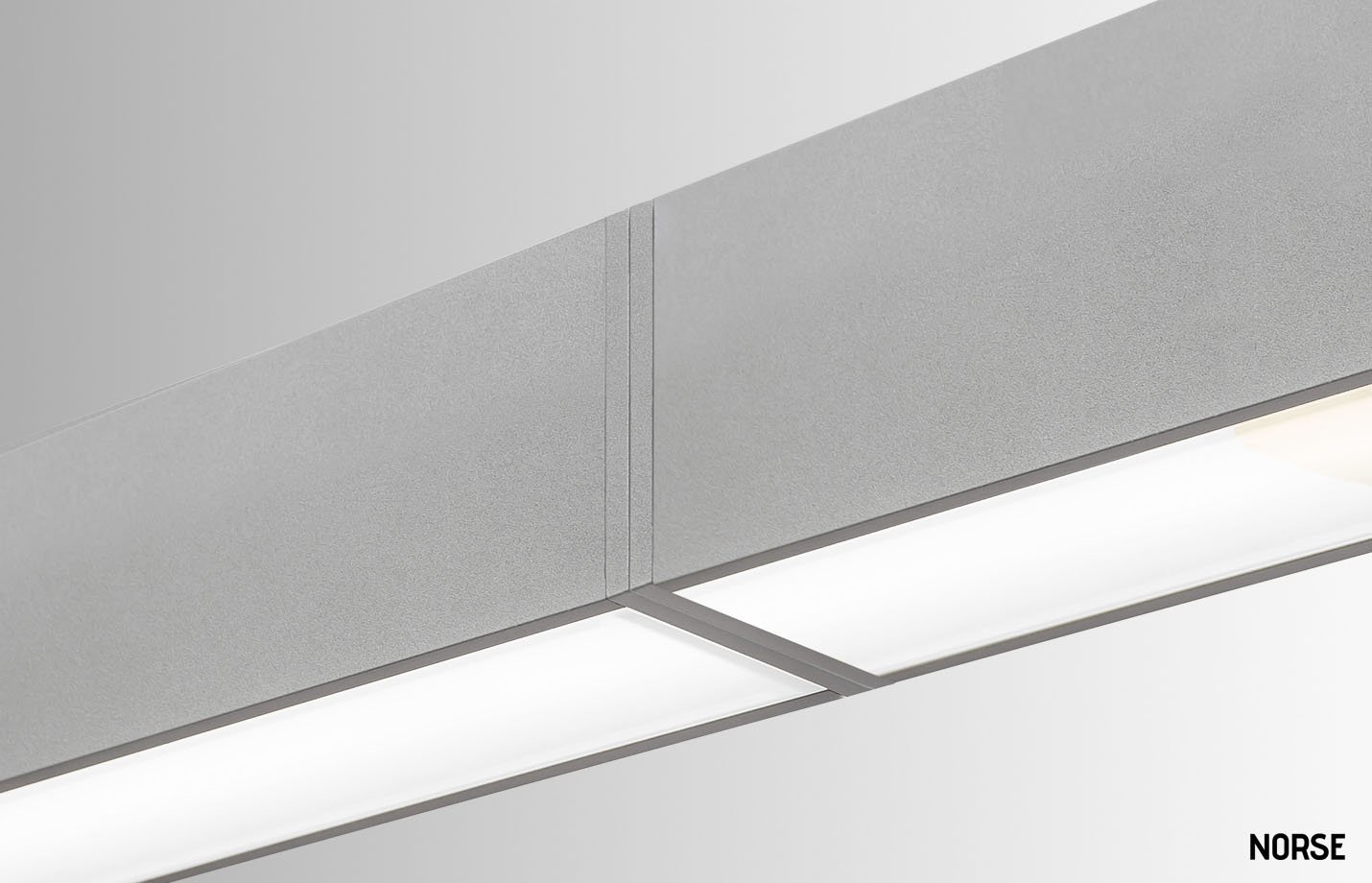

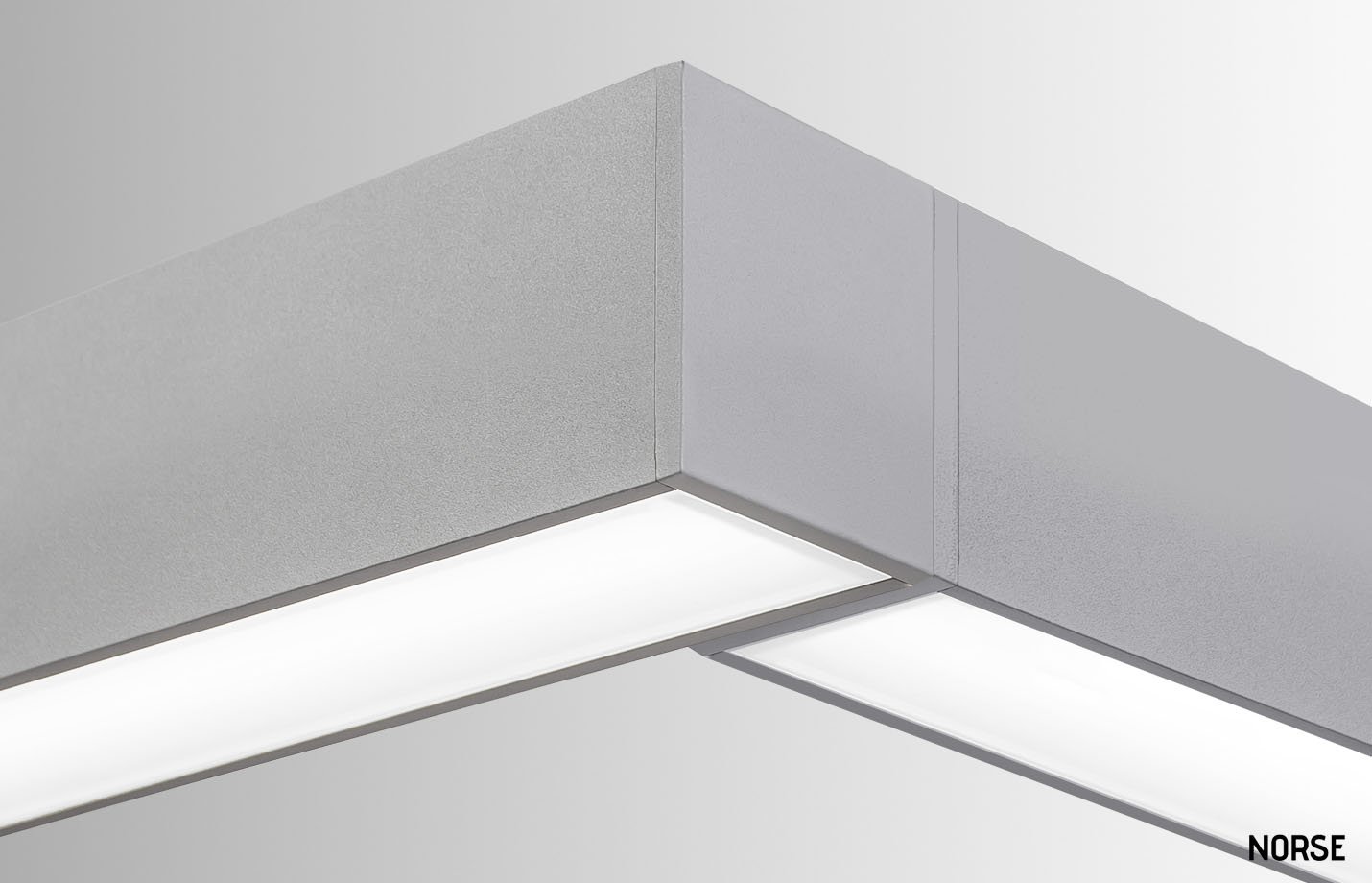

  • Mechanical joining kit with every product
  • Start / End piece includes end cap
  • Available in 4 building block lengths
  • Suitable for surface mount or suspension fixing

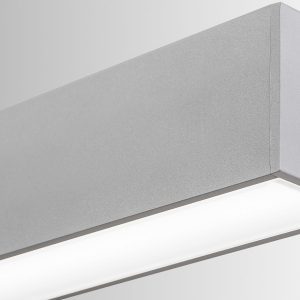

  • Finished in RAL 9006 grey as standard
  • TPa opal lens for general and visual areas as standard
  • Low Glare prismatic lens available for office and LG7 compliance
  • Tridonic low energy LED and driver system
  • Life up to >60,000 hours L80/F10

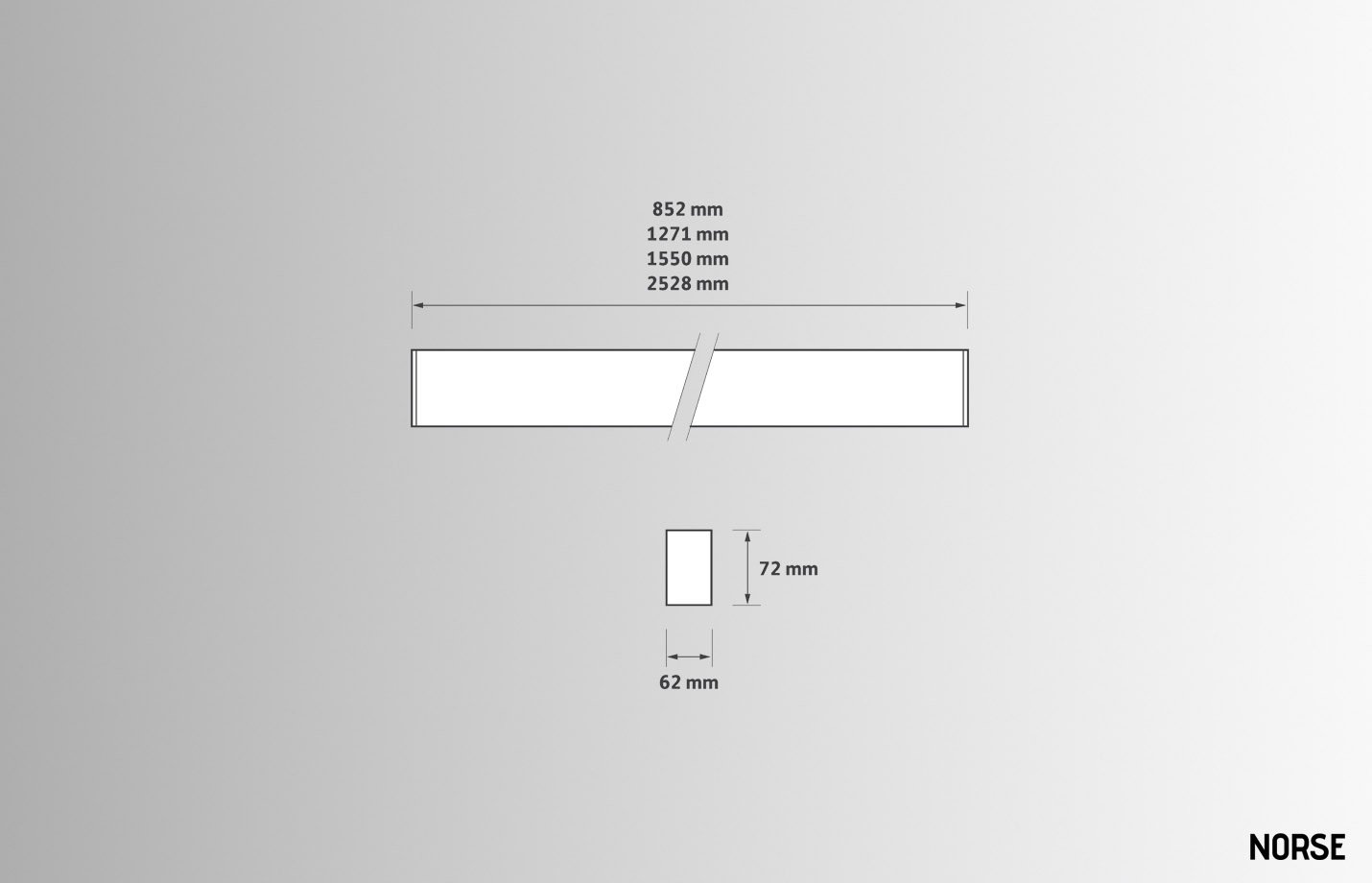

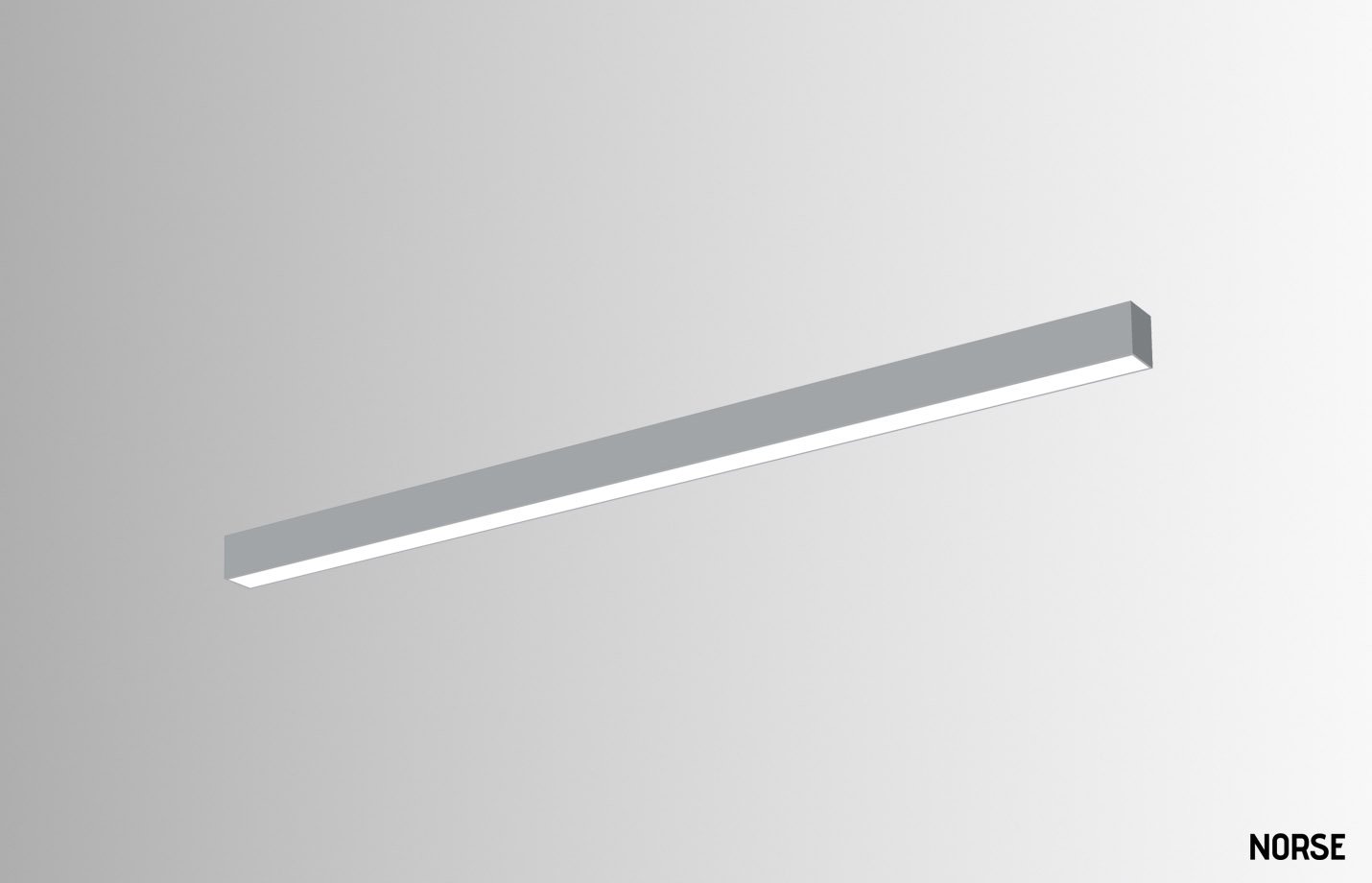

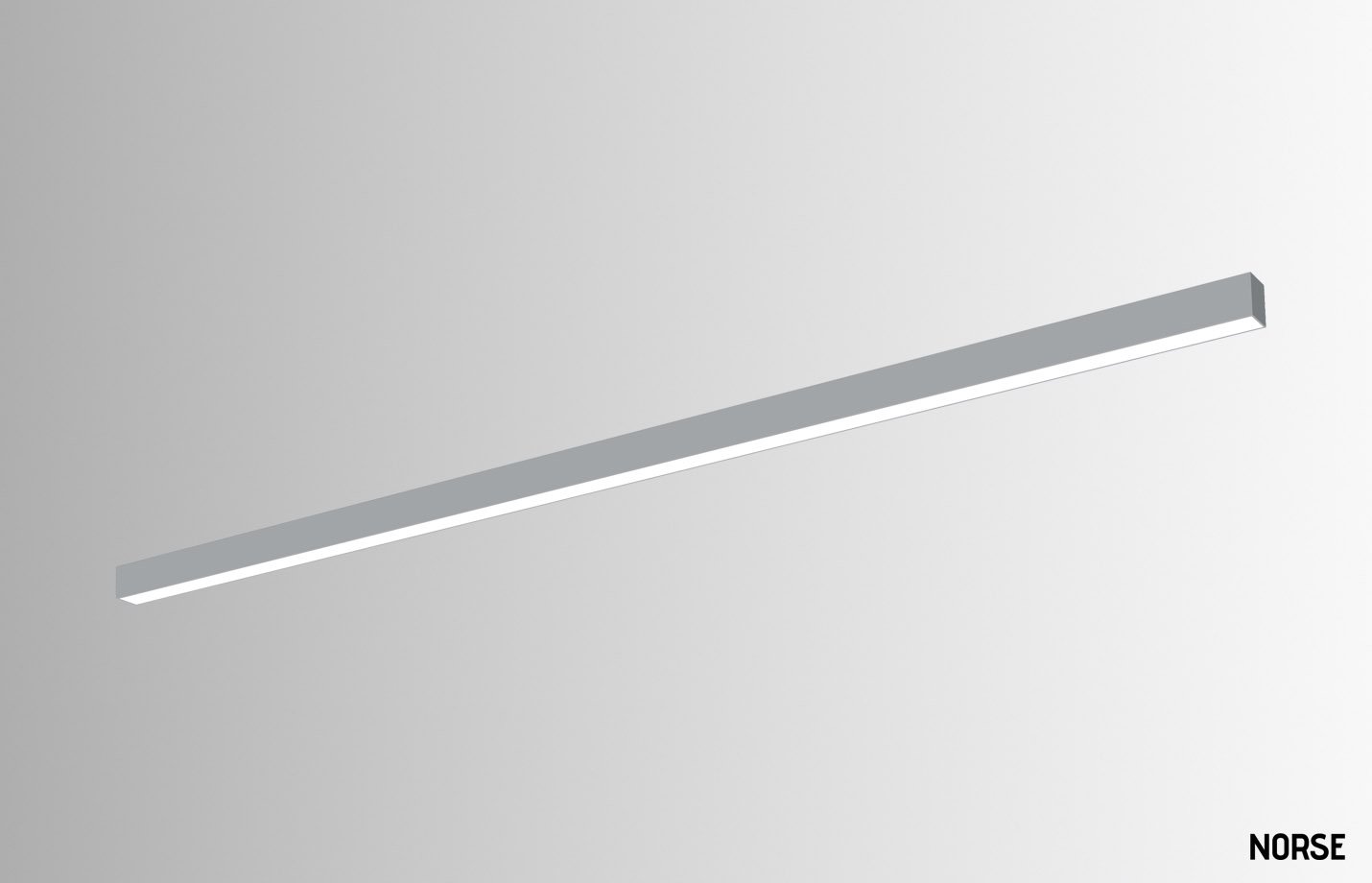

  • Dimensions: 850 mm (M1) | 1.2 Mtr (M2) | 1.5 Mtr (M3) | 2.5 Mtr (M4)
  • Power (W) (Standard): 21W | 30W | 35W | 60W
  • Light Output(LM) (Standard): 1850lm | 2750lm | 3375lm | 5525lm
  • Power (W) (Lower output): 15W | 21W | 25W | 42W
  • Light Output(LM) (Lower output): 1300lm | 1925lm | 2375lm | 3875lm
  • Power (W) (Higher output): 31W | 45W | 55W | 91W
  • Light Output(LM) (Higher output): 2750lm | 4100lm | 5025lm | 8225lm
  • Color Temperature (Kelvin): 3000K, 4000K
  • Installation: Surface Mounting
  • Lamp Type: LED
  • IP: IP40
  • Mains voltage: 220-240V
  • Mains frequency: 50 – 60Hz
  • Power factor: >0.9
  • Colour rendering (Ra): >80
  • Lifetime: 50,000h
  • Operating temperature: -20 to +40 deg C

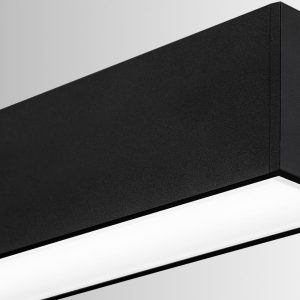

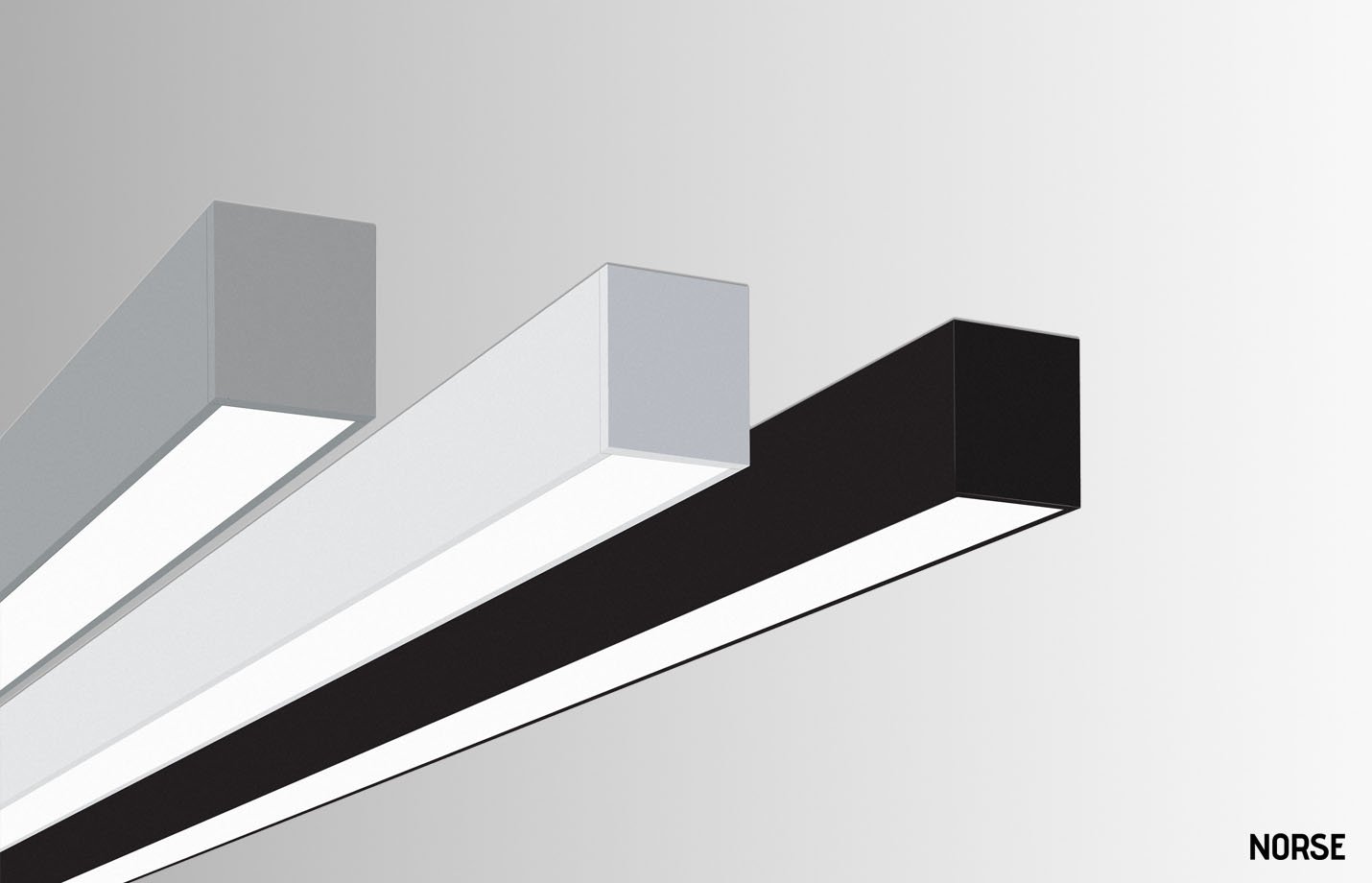

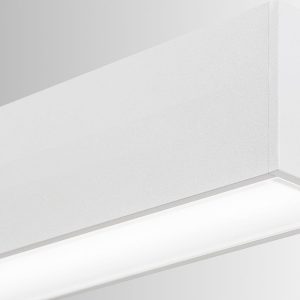

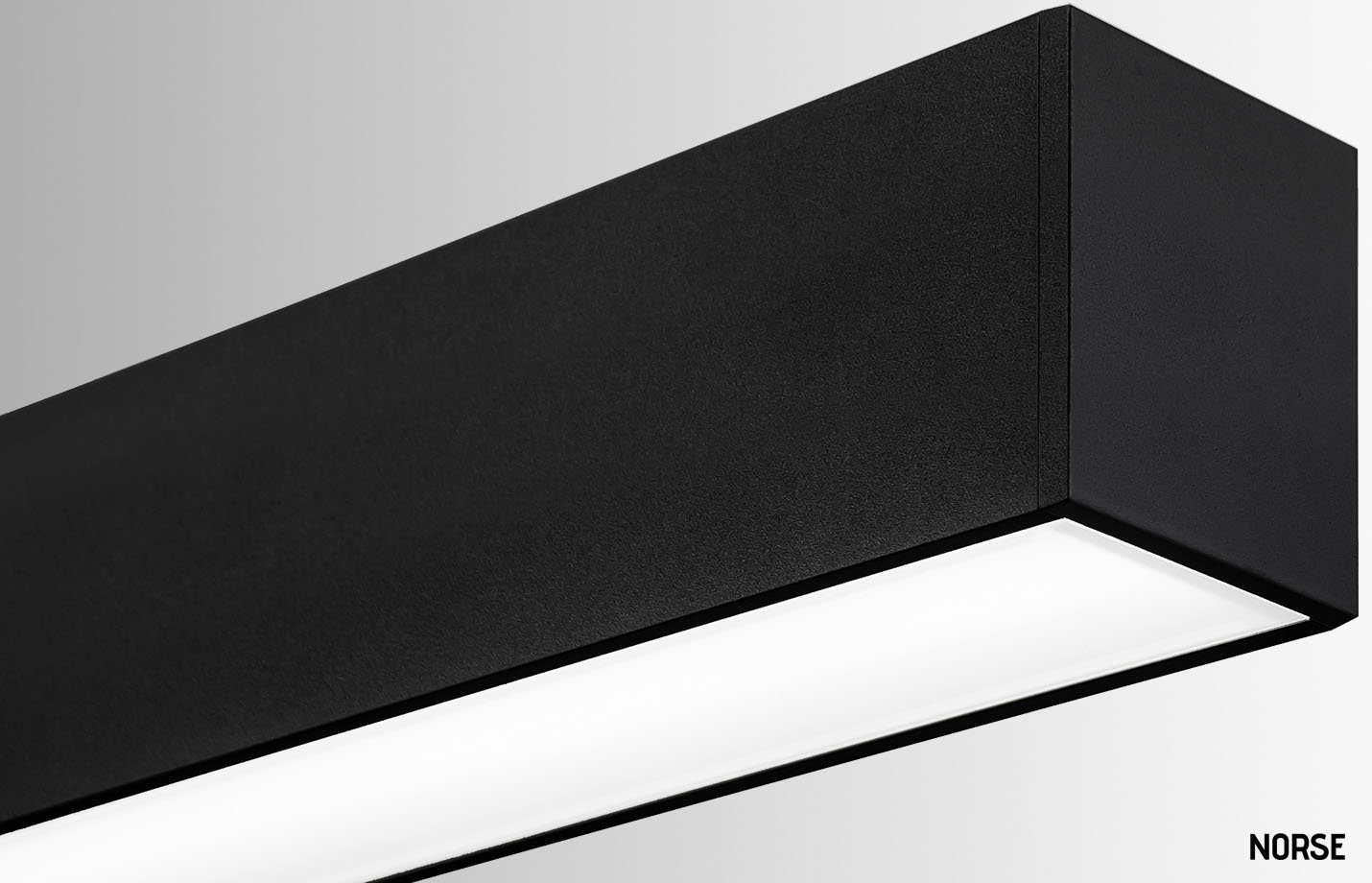

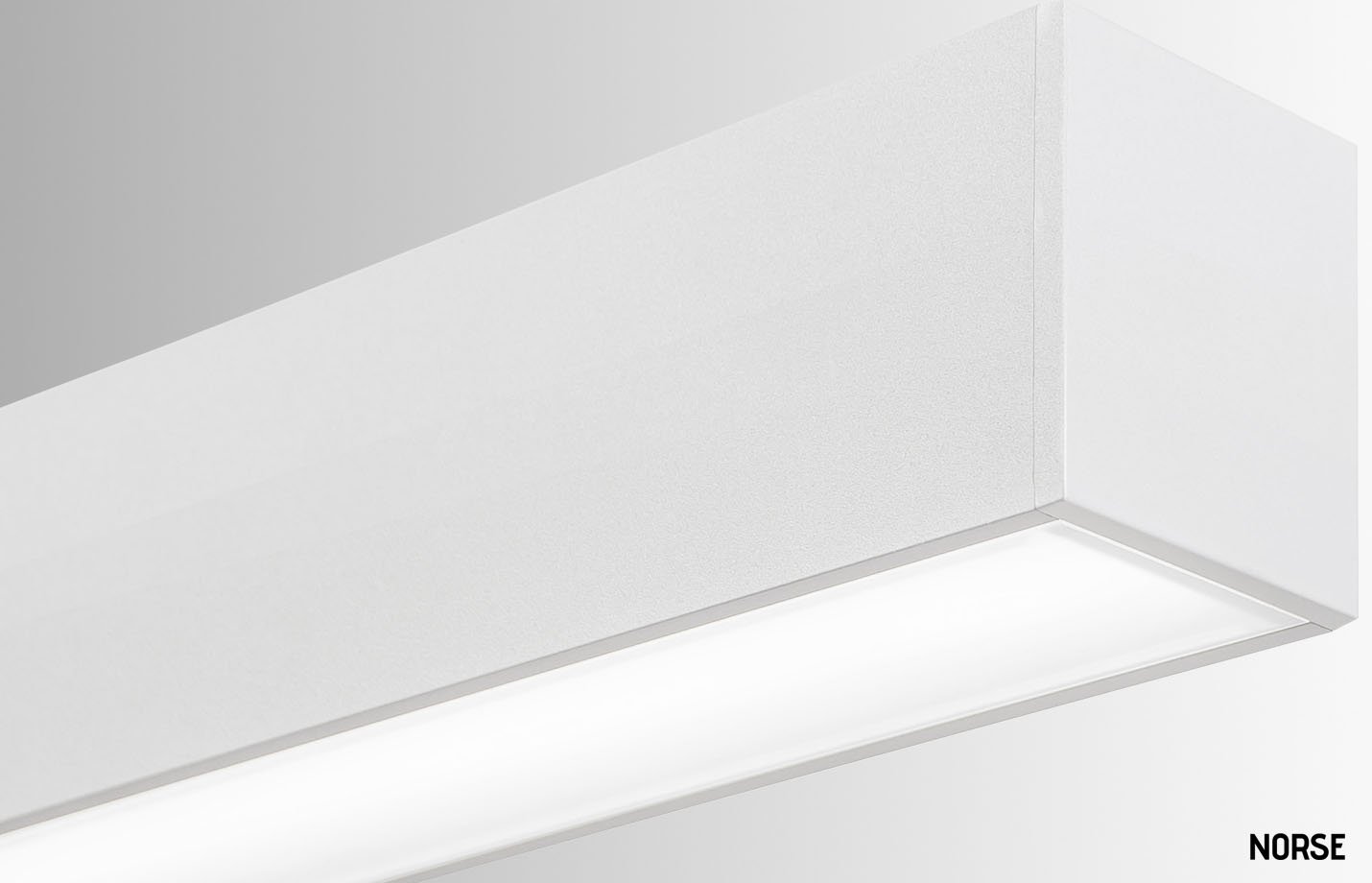

  • Housing Color: White, Black, Grey
  • Warranty: 3 Years
  • Options: Start / end section with end cap, Lower output, Higher output, Low glare prismatic lens, SwitchDIM, DALI or DSI, EM conversion, Custom colours

Made in UK

Note: Minimum Order Quantities may apply
