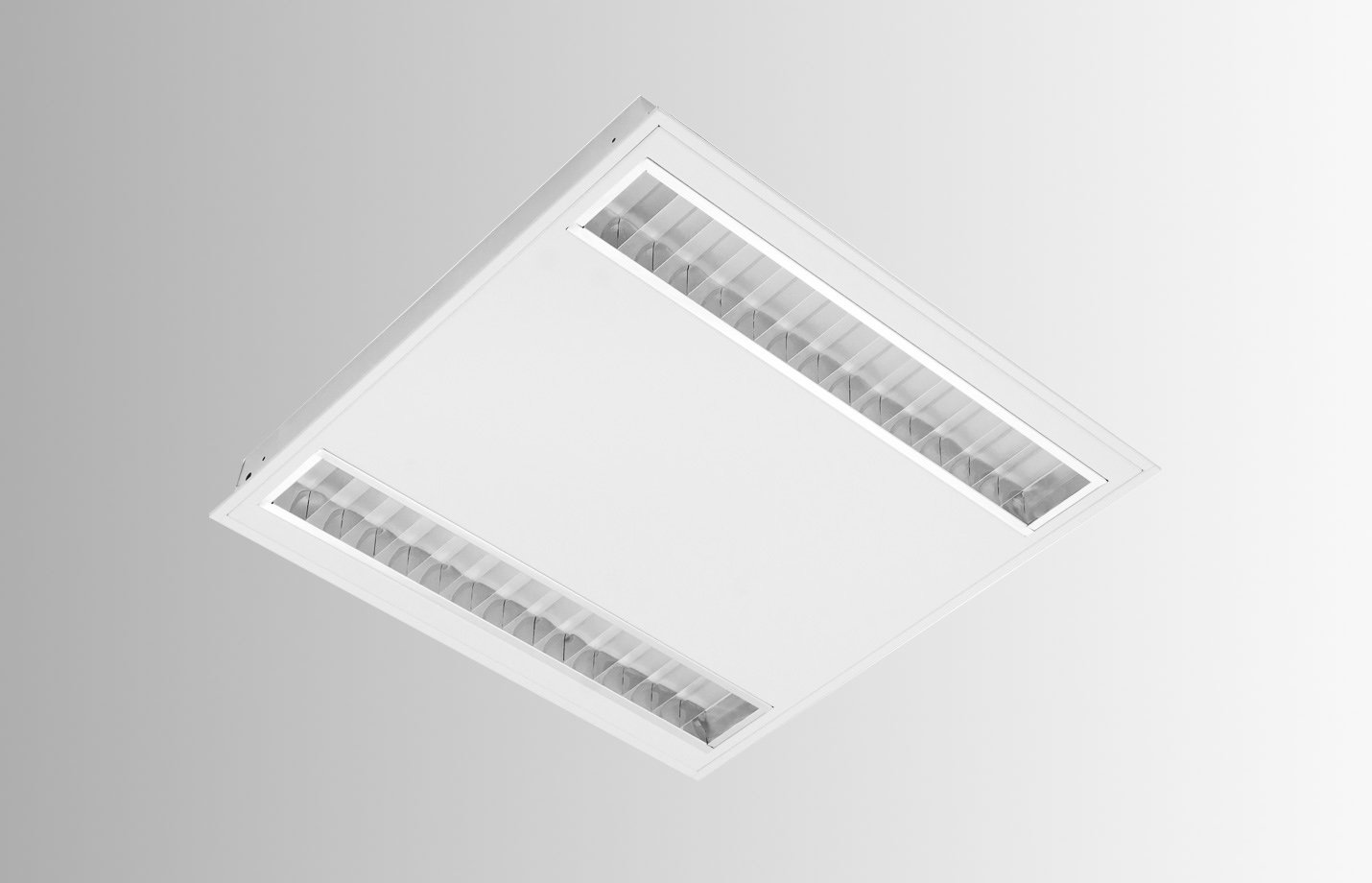

Elmer Series LED Panel

  • White painted (RAL 9003) galvanized metal sheet

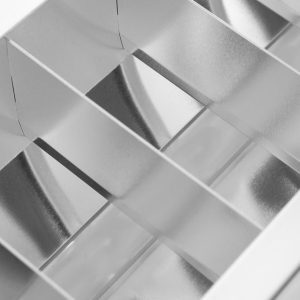

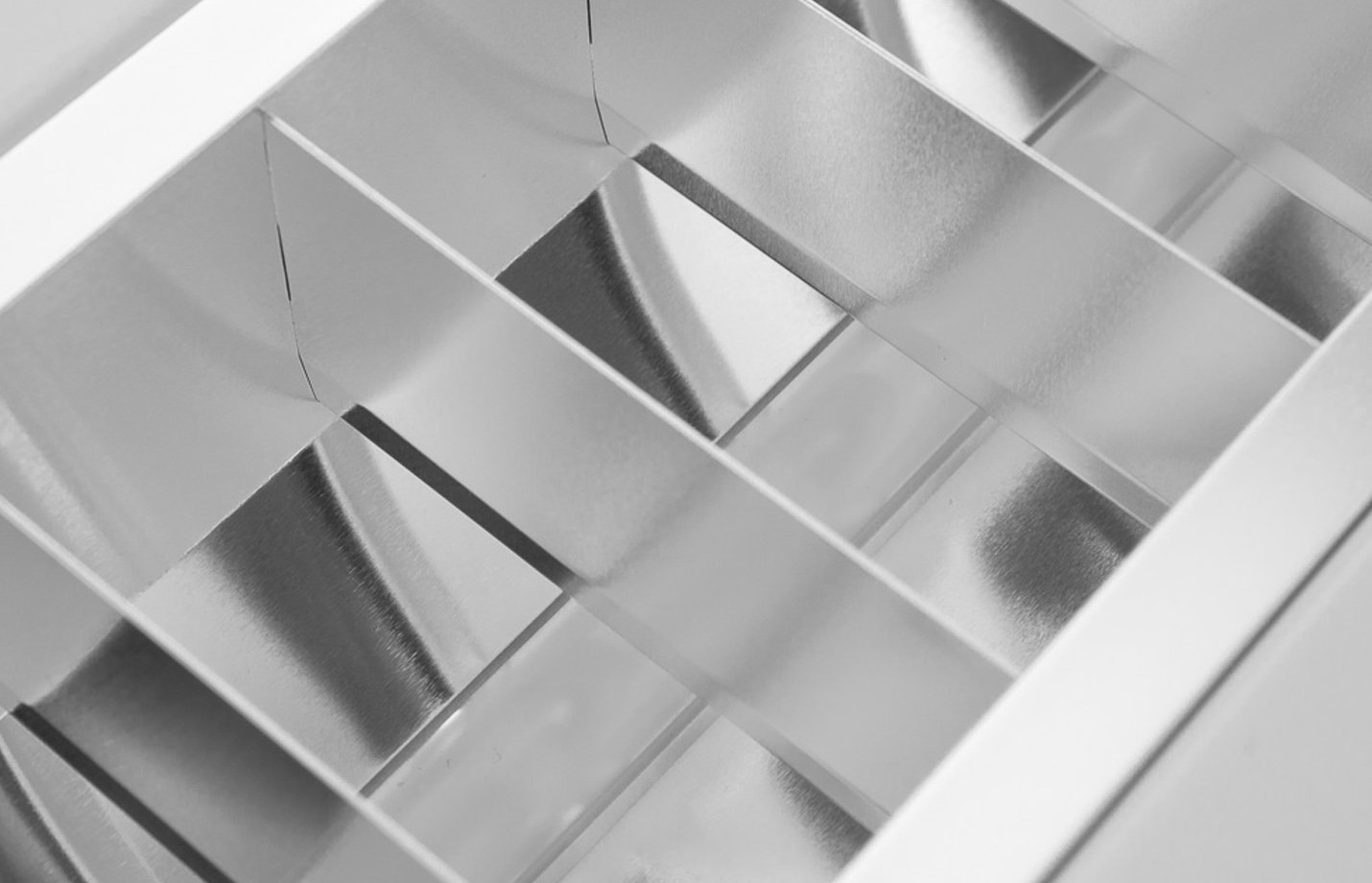

  • Optics : KV – Double parabolic louvre of highly polished aluminium, with opal cover of LED modules / KVM – Double parabolic louvre of mat aluminium, with opal cover of LED modules
  • Mid power LED
  • CRI >80 (CRI >90 on request)

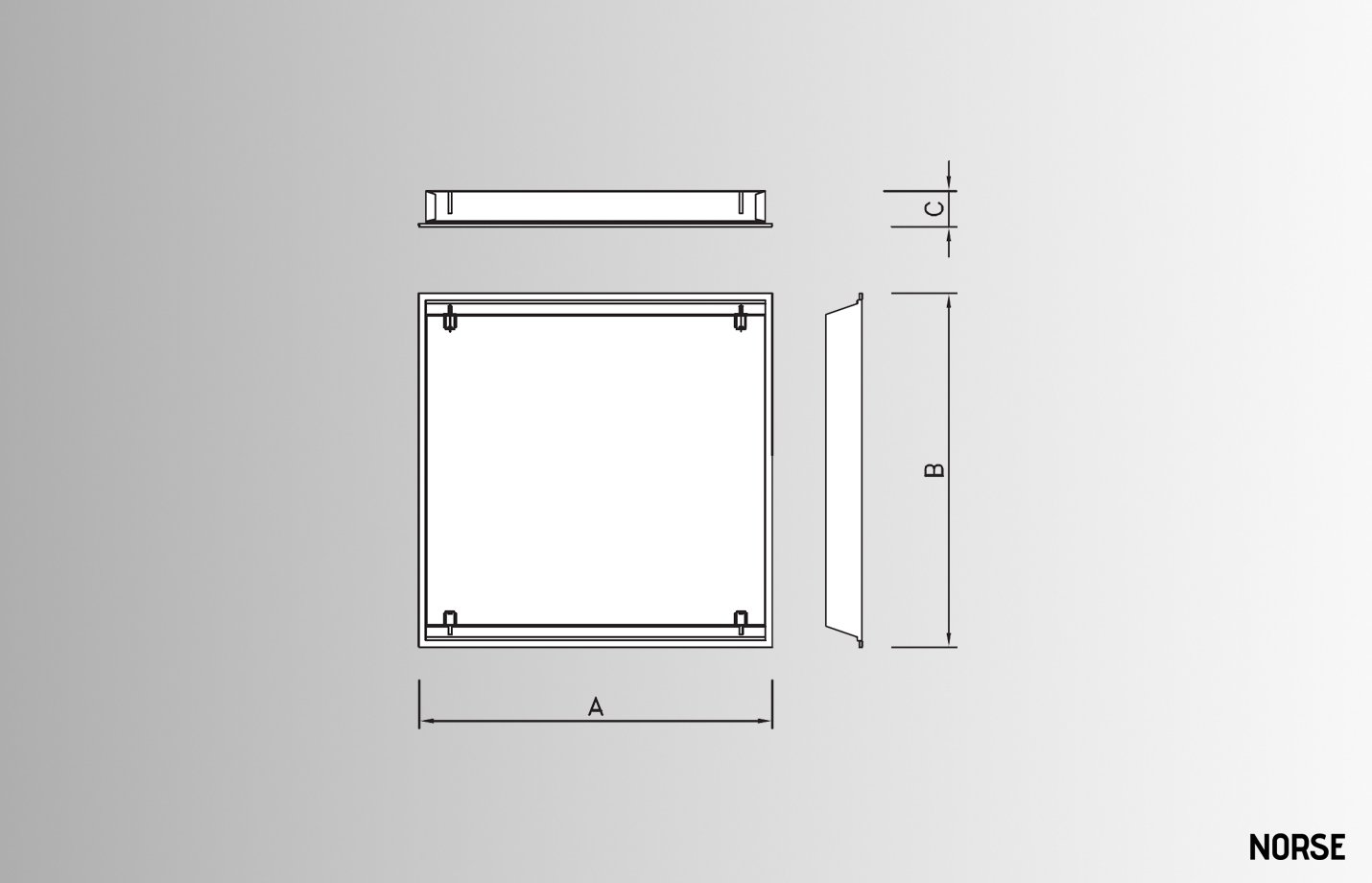

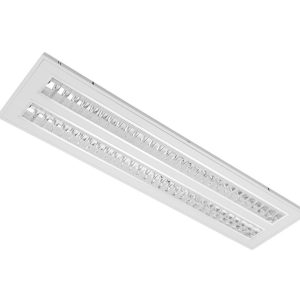

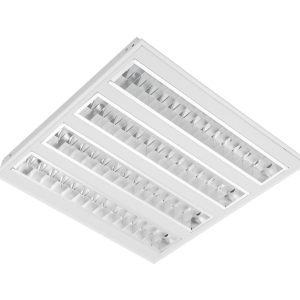

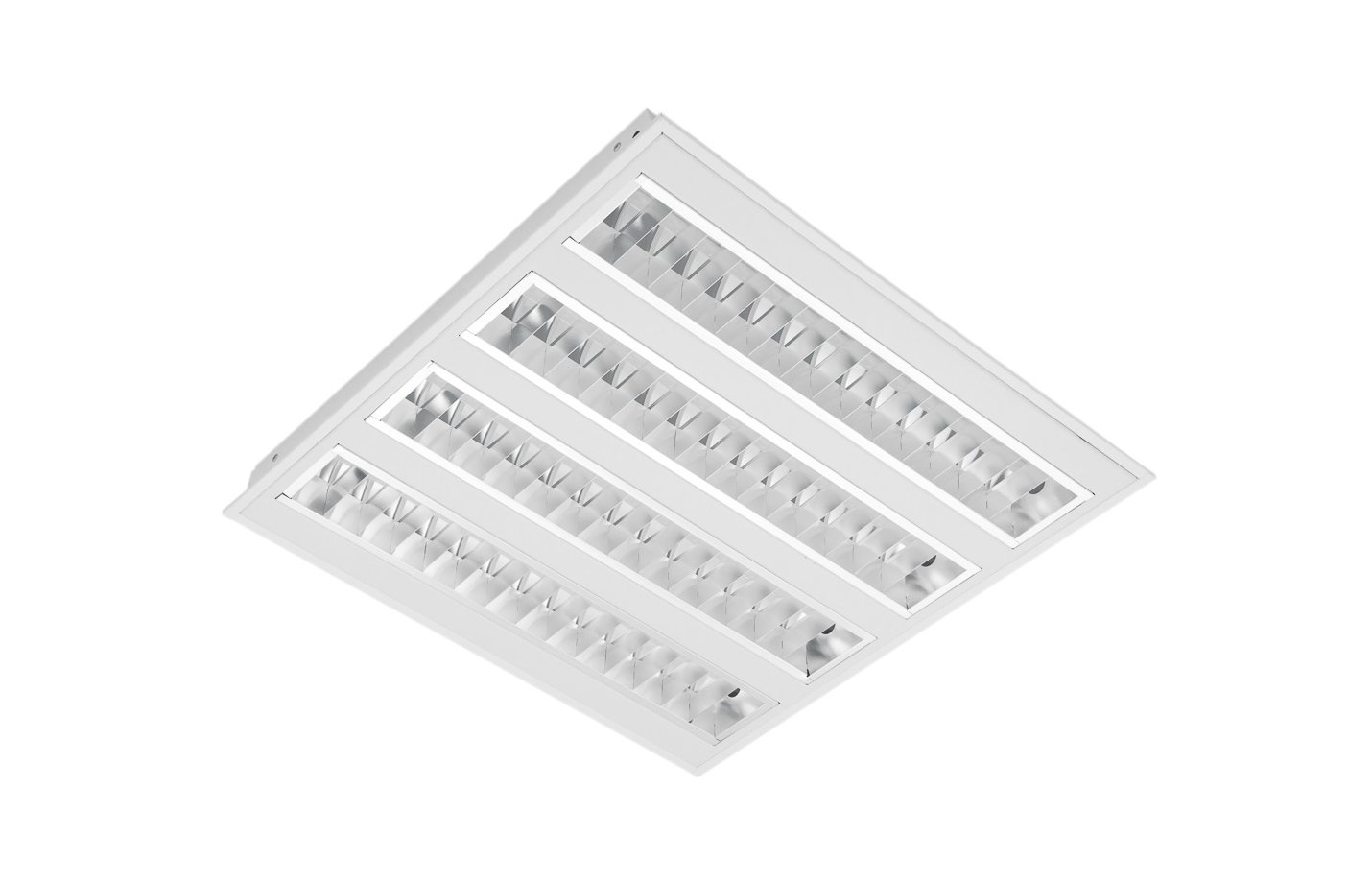

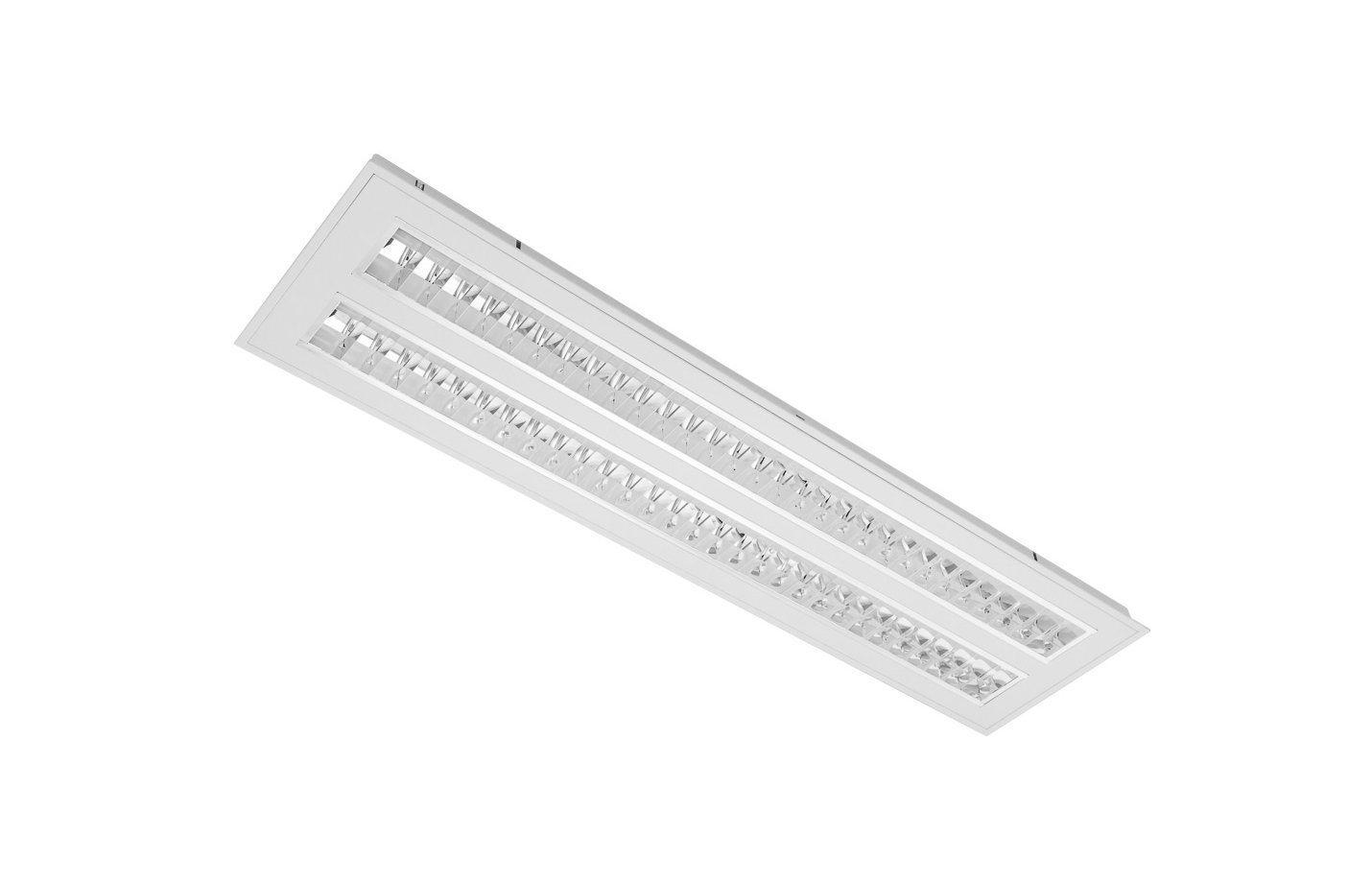

  • Dimensions (MM): L600xW600xH52MM (L2)(M1) | L625xW625xH52MM (L2)(M2) | L600xW600xH52MM (L4)(M3) | L625xW625xH52MM (L4)(M4) | L1200xW300xH52MM (L2)(M5) | L1250xW310xH52MM (L2)(M6)
  • Power (W): 33W | 33W | 27W, 37W | 27W, 37W | 27W, 37W | 27W, 37W
  • Light Output (lm) (KV & KVM): 3600lm | 3600lm | 3300lm, 4300lm | 3300lm, 4300lm | 3300lm, 4300lm | 3300lm, 4300lm
  • Color Temperature (K): 3000K, 4000K, 5700K
  • Installation: Recessed Mounting
  • Lamp Type: LED
  • IP: IP20
  • Mains voltage: 220-240V
  • Mains frequency: 50 – 60Hz
  • UGR: <19
  • Colour rendering (Ra): >80
  • Lifetime: 80,000H
  • Housing Color: White
  • Optics: KV – Double parabolic louvre of highly polished aluminium or KVM – Double parabolic louvre of mat aluminium
  • Accessories (Optional): Dali, Dim 1-10V, Frame for recessed installation into Gypsum ceiling (NR-PF-R)
  • Warranty: 3 Years

Note: Minimum Order Quantities may apply

Elmer Series LED Panel Datasheet

Clear

Minimum order quantities may apply.
