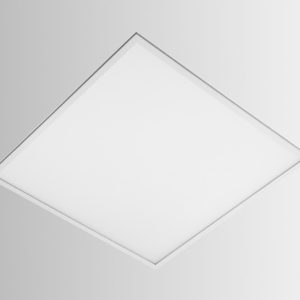

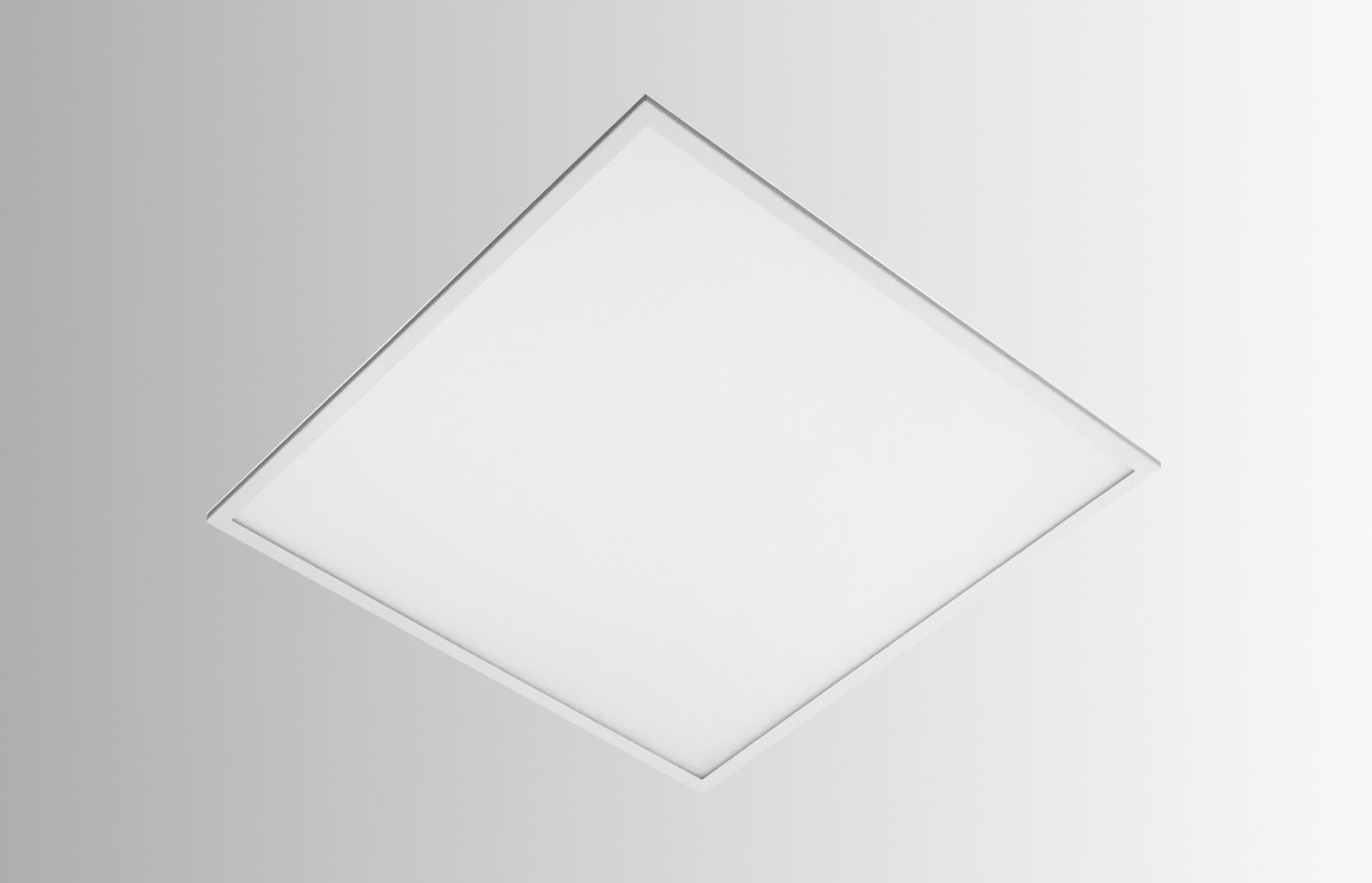

Aaron Series Slim Microprismatic LED Panel main

Aaron Series Slim Microprismatic LED Panel main

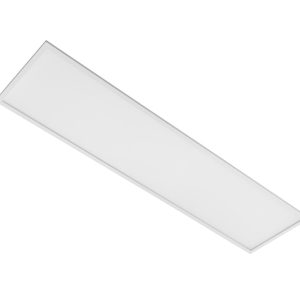

Aaron LED Panel Add01

Aaron Series Slim Microprismatic LED Panel

White painted (RAL 9003) metal sheet
Transluscent acrylic layer + Microprismatic cover
Mid power LED
CRI 80

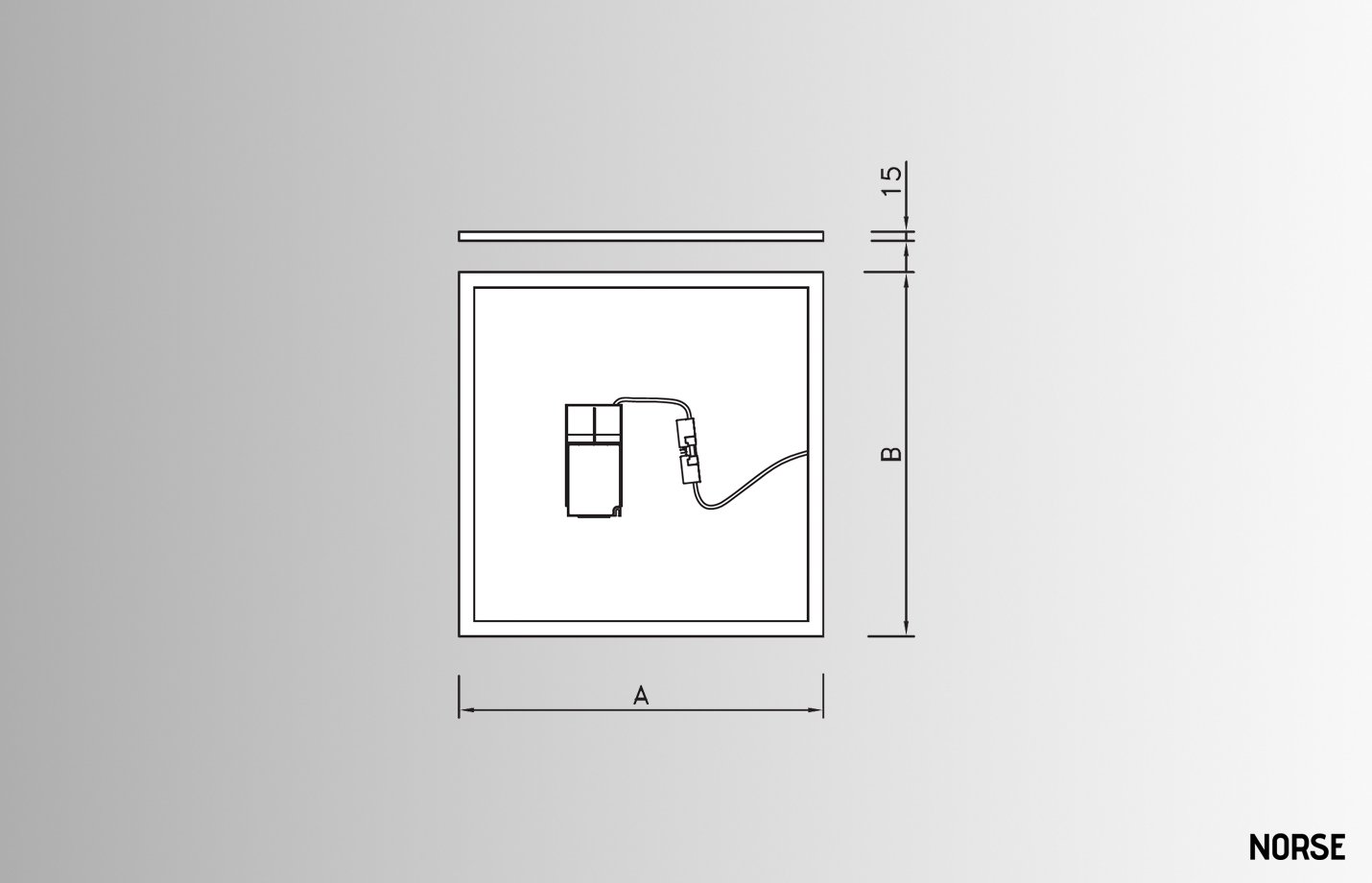

Dimensions (MM): L600XW600XH15MM (M1) | L1200XW300XH15MM (M2)
Power (W): 27W, 36W | 27W, 36W
Light Output (lm): 3200lm, 4100lm | 3000lm, 3900lm
Color Temperature (K): 3000K, 4000K, 5700K
Installation: Recessed Mounting, Surface Mounting
Lamp Type: LED
IP: IP40 / IP20
Mains voltage: 220-240V
Mains frequency: 50 – 60Hz
UGR: <19
Colour rendering (Ra): >80
Lifetime: 50,000H
Beam Angle (Degree): 120°
Housing Color: White
Options: Dali
Accessories (Optional): Frame for surface installation (NR-PF-S), Frame for recessed installation into gypsum plasterboard ceiling (NR-PF-R)
Standard Warranty: 2 Years
Extended Warranty: 3 Years

Note: Minimum Order Quantities may apply

Aaron Series Slim LED Panel Datasheet

Select Dimension (MM):

Select Power (W):

Select Color Temperature (K):

Select Installation:

Select Accessories:

Request a price quote

SKU: OL-AARON Category: LED Panel Lights Tags: Education Lighting, Food Industry Lighting, Hotel Lighting, Office Lighting, Retail Lighting - Tag, Shopping Centres Lighting
