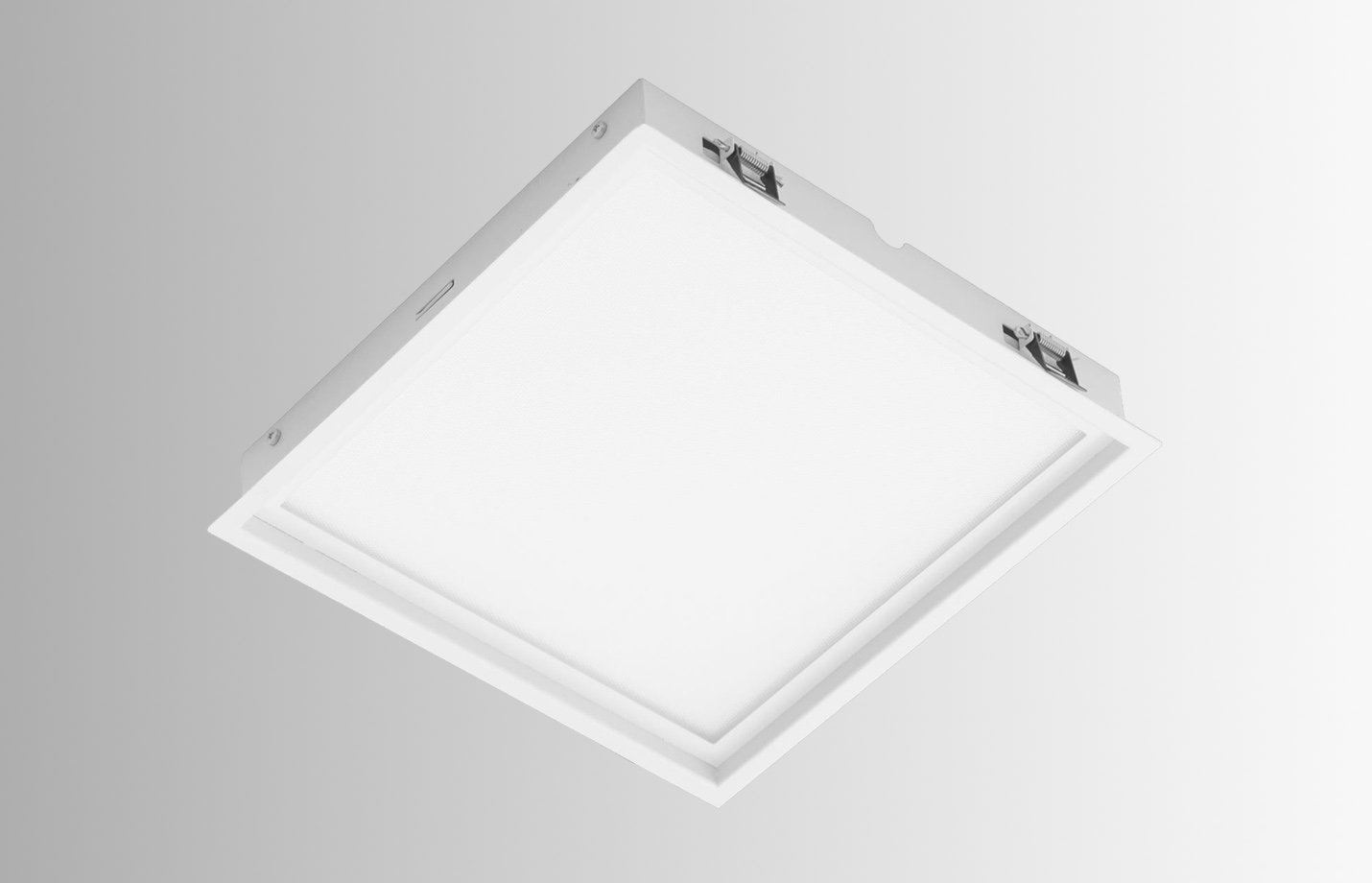

Dorian Square Downlight Main

Dorian Square Downlight Add 01

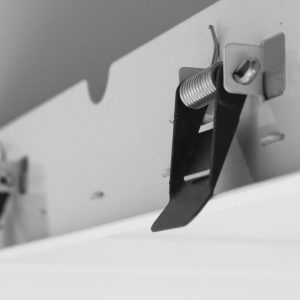

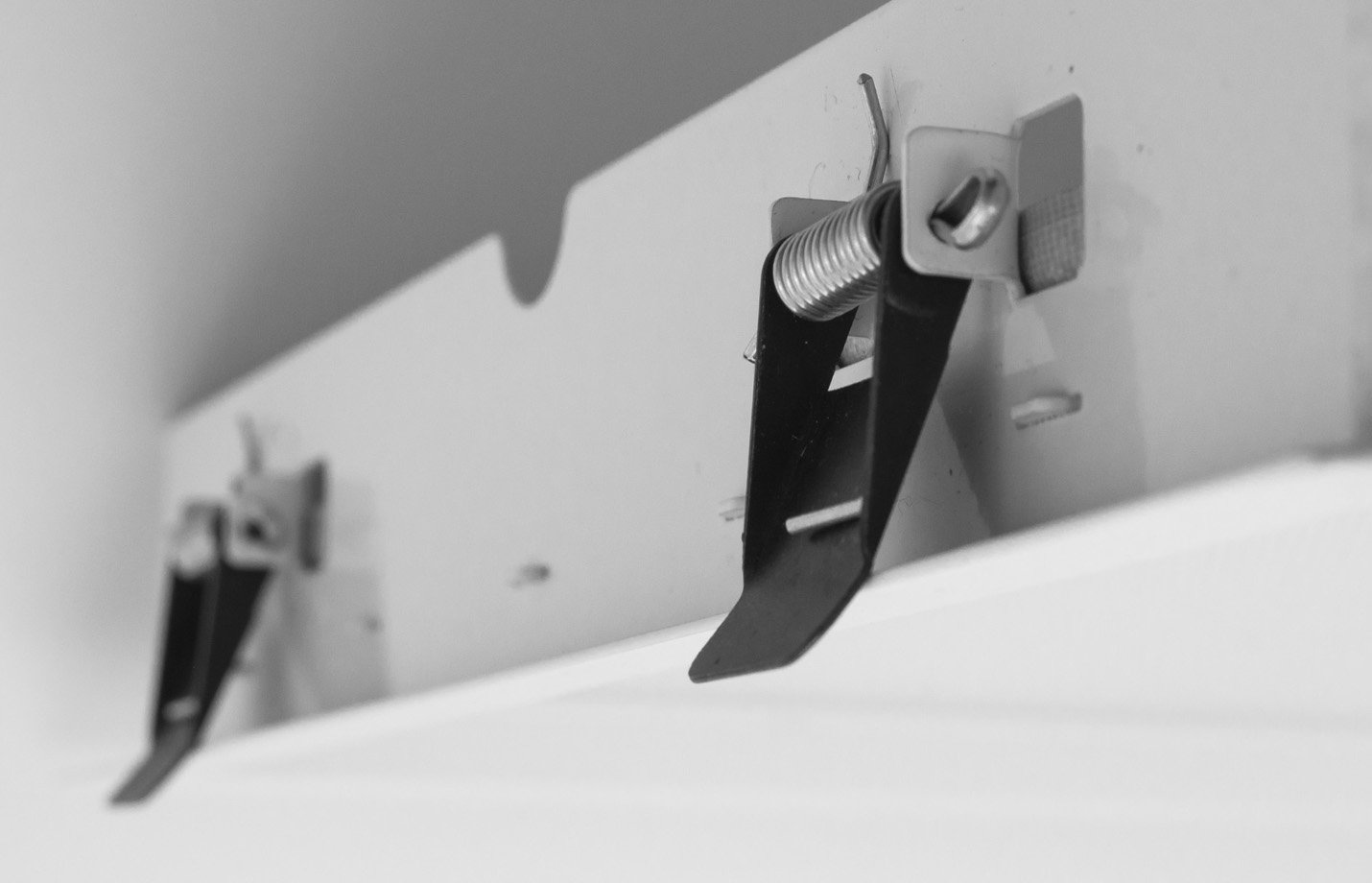

Dorian Square Downlight Add 02

Dorian Square Downlight Main

Dorian Square Downlight Add 01

Dorian Square Downlight Add 02

Dorian Series Square Downlight

White painted (RAL 9003) metal sheet

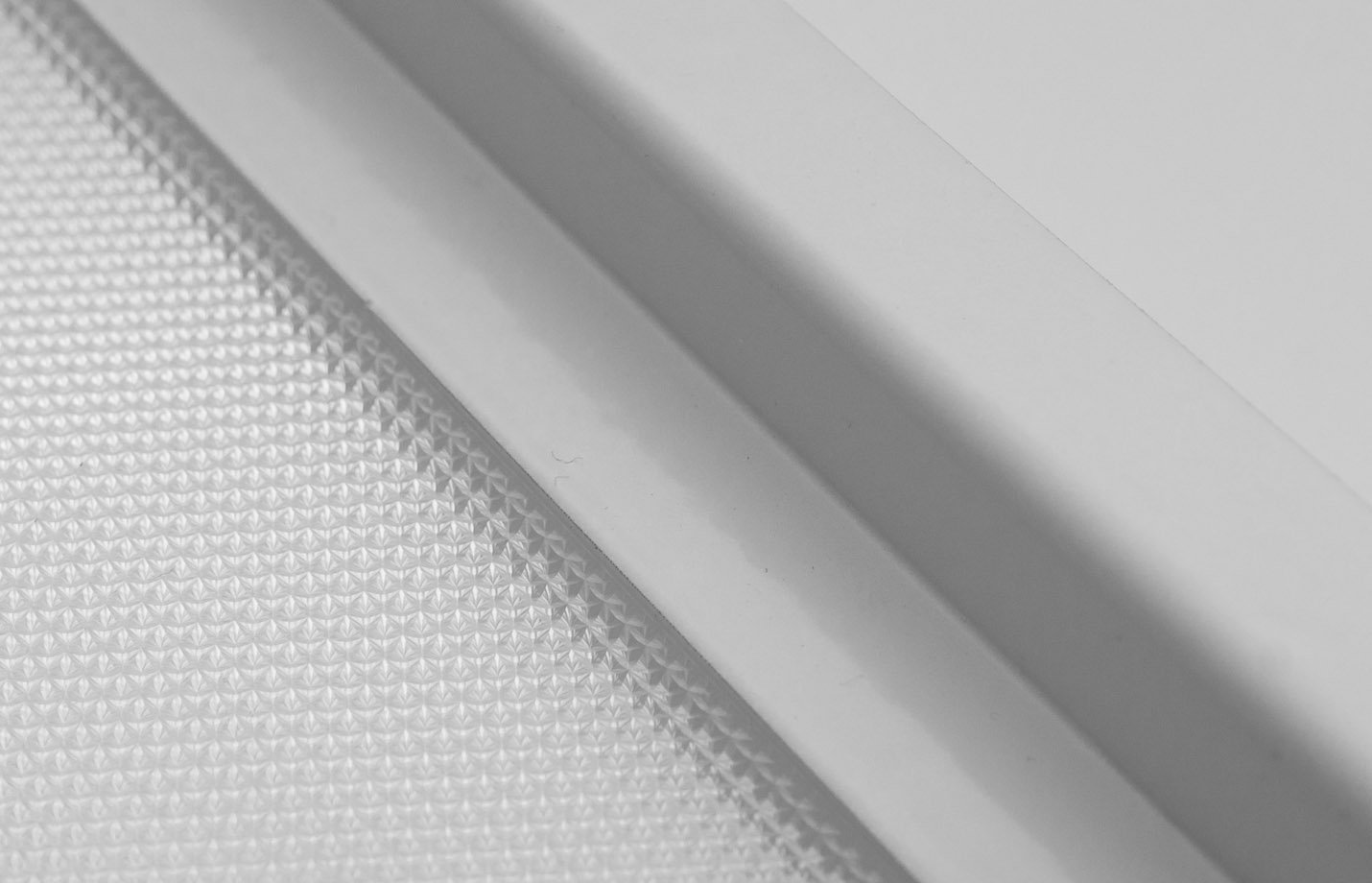

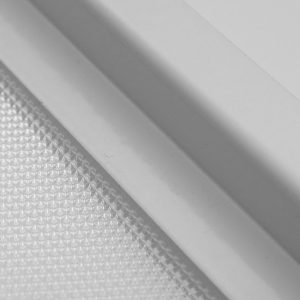

Transluscent acrylic layer with microprismatic cover
Mid power LED
CRI >80 (CRI 90 on request)

Dimensions (MM): L296xW296xH46MM (M1)
Power (W): 17W, 23W
Light Output (lm): 1800lm, 2300lm
Color Temperature (K): 2700K, 3000K, 4000K, 5700K
Installation: Recessed
Lamp Type: LED
IP: IP20
Mains voltage: 220 – 240V
Mains frequency: 50 – 60Hz
Colour rendering (Ra): >80
Lifetime: 80,000H
Operating temperature: -20 to +40° C
Option: Dali
Standard Warranty: 2 Years
Extended Warranty: 3 Years

Note: Minimum Order Quantities may apply

Dorian Series Square Downlight Datasheet

Select Dimension:

Select Power (W):

Select Color Temperature (K):

Select Option:

Request a price quote

SKU: OL-DORIAN-M1 Category: LED Downlights Tags: Food Industry Lighting, Hotel Lighting, Retail Lighting - Tag, Shopping Centres Lighting
