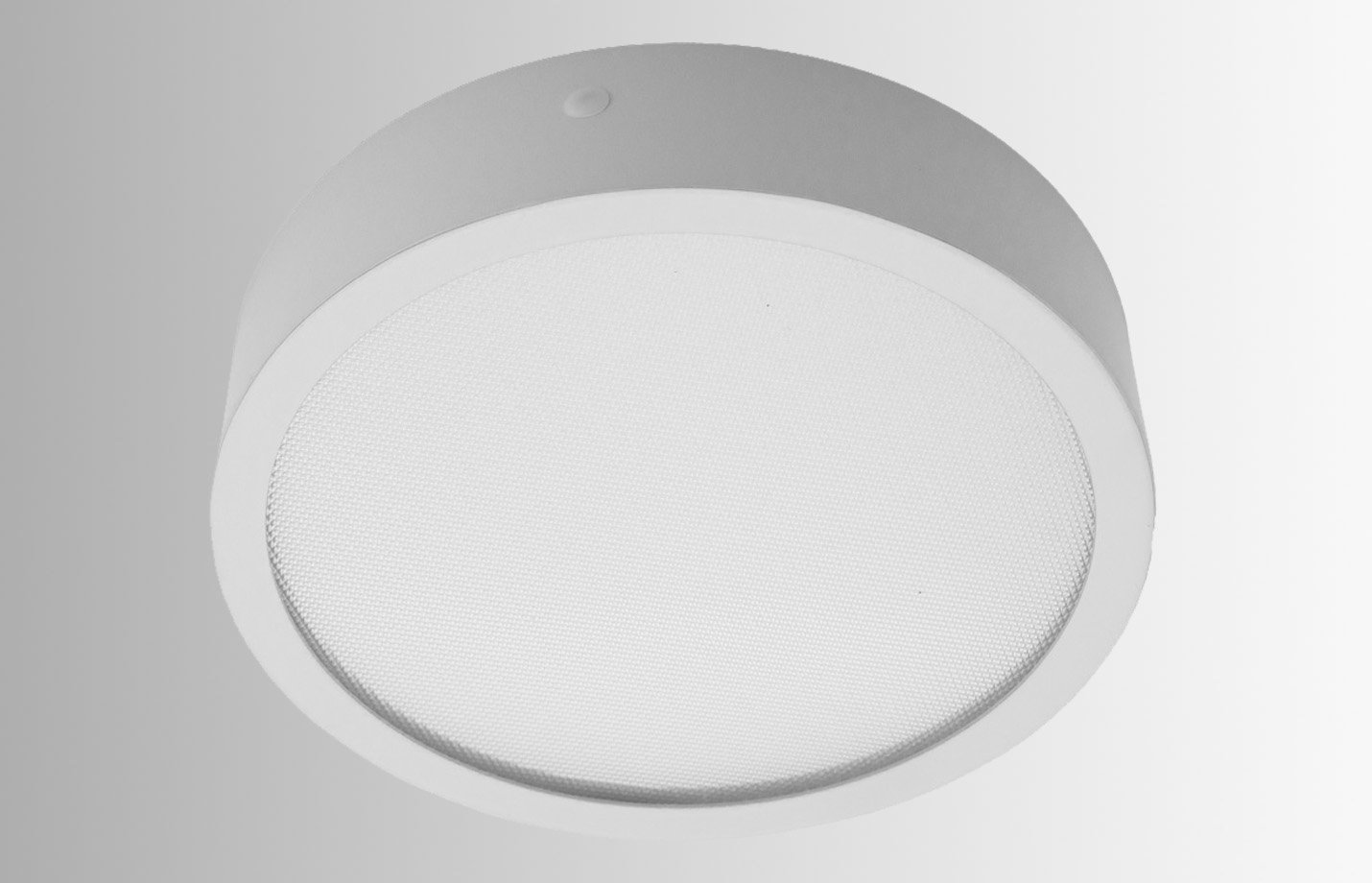

Eaton Round Downlight Main

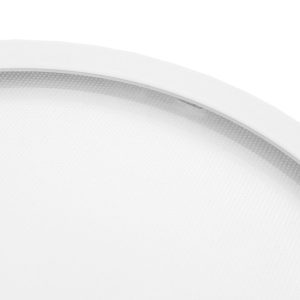

Eaton Round Downlight Add 01

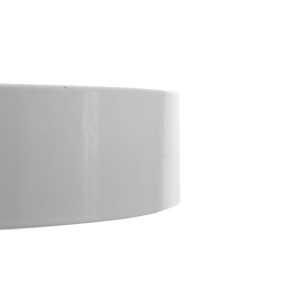

Eaton Round Downlight Add 02

Eaton Round Downlight Main

Eaton Round Downlight Add 01

Eaton Round Downlight Add 02

Eaton Series Round Downlight

White painted (RAL 9003) metal sheet
Transluscent acrylic layer with microprismatic cover
Mid power LED

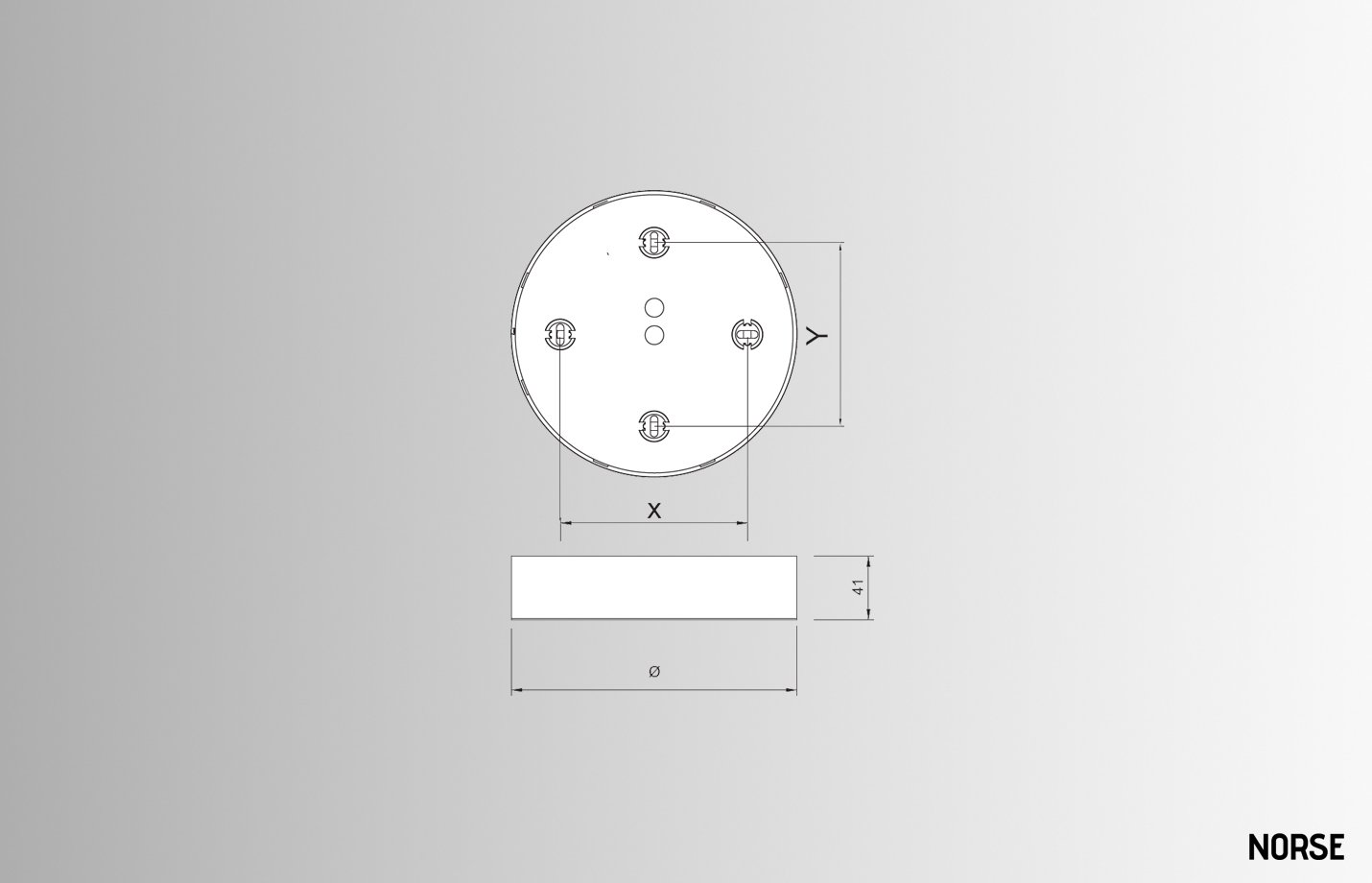

Dimensions (MM): D190XH41MM (M1) | D370XH45MM (M2) | D550XH45MM (M3)
Power (W): 14W, 22W | 28W, 36W | 34W, 40W
Light Output (lm): 1100lm, 1800lm | 2600lm, 3200lm | 3400lm, 3900lm
Color Temperature (K): 3000K, 4000K, 5700K
Installation: Surface Mounted
Lamp Type: LED
IP: IP20
Mains voltage: 220 – 240V
Mains frequency: 50 – 60Hz
Colour rendering (Ra): 80
Lifetime: 80,000H
Option: Dali
Standard Warranty: 2 Years
Extended Warranty: 3 Years

Note: Minimum Order Quantities may apply

Eaton Series Round Downlight Datasheet

Select Dimension (MM):

Select Power (W):

Select Color Temperature (K):

Select Option:

Request a price quote

SKU: OL-EATON Category: LED Downlights Tags: Food Industry Lighting, Hotel Lighting, Retail Lighting - Tag, Shopping Centres Lighting
