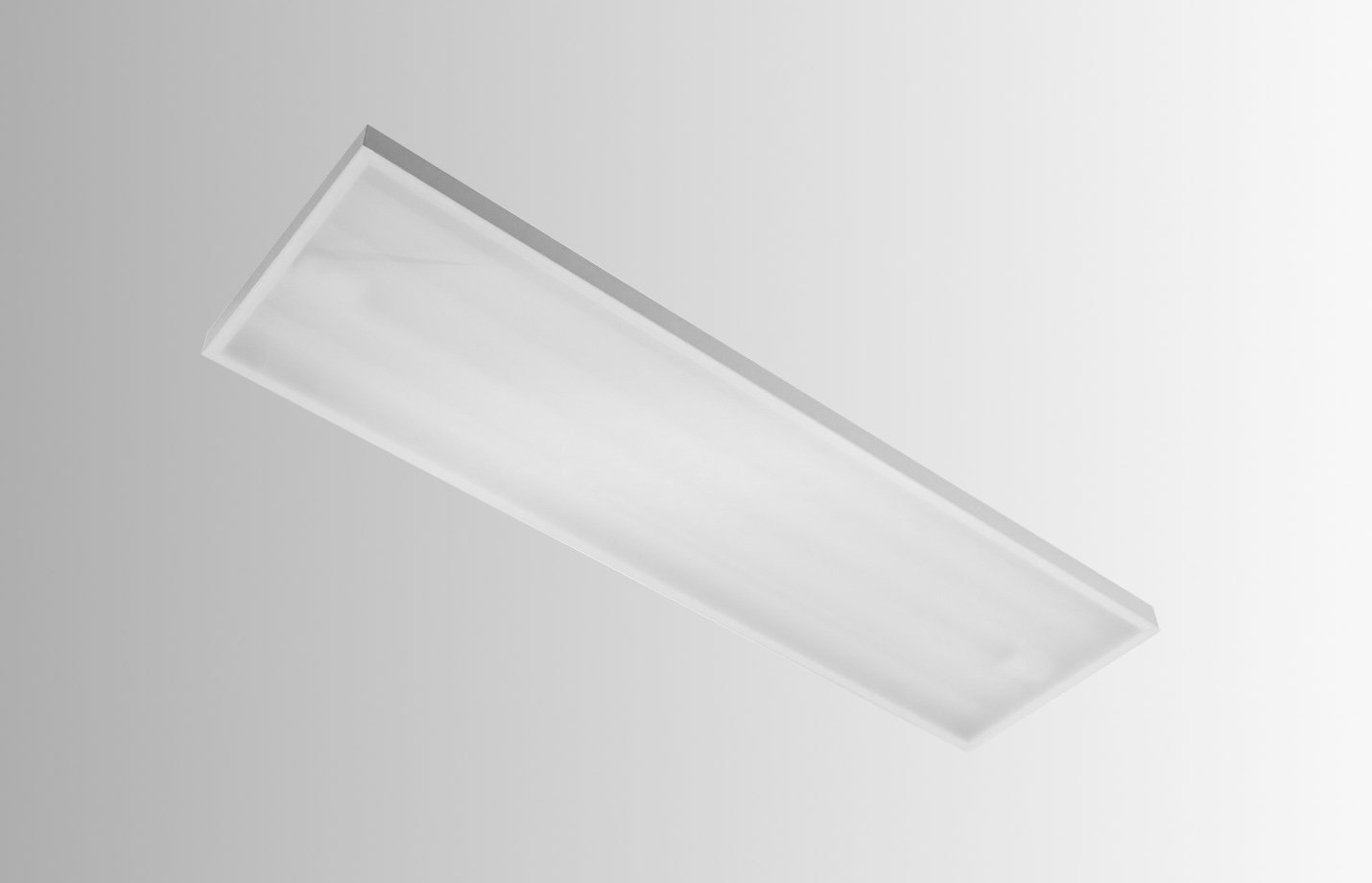

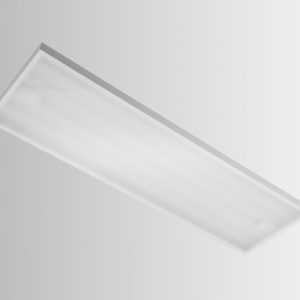

Leon Series High bay Lights Main

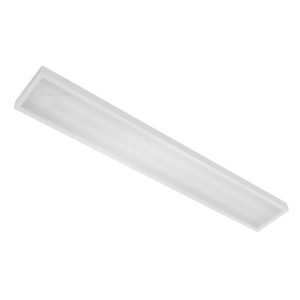

Leon High bay Lights 2M Add 01

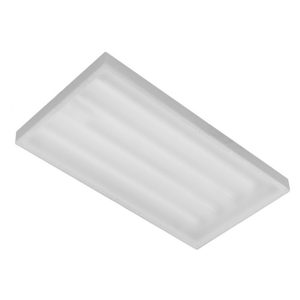

Leon High bay Lights 4S Add 02

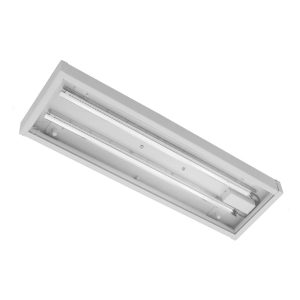

Leon High bay Lights Add 03

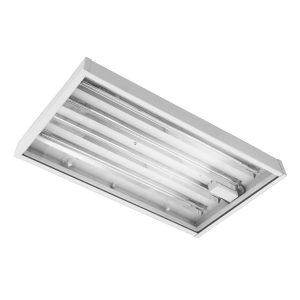

Leon High bay Lights Add 04

Leon Series High bay Lights Main

Leon High bay Lights 2M Add 01

Leon High bay Lights 4S Add 02

Leon High bay Lights Add 03

Leon High bay Lights Add 04

Leon Series High bay Lights

White painted (RAL 9003) metal sheet
Highly polished reflectors made of Miro aluminium
Cover types: KC – Clear hardened glass (Standard), PC – Clear polycarbonate, KN – Microprismatic PMMA, PCN – Microprismatic cover (PCN)
Mid power LED
CRI 80 (CRI 90 on request)
PIR Sensor (Optional)

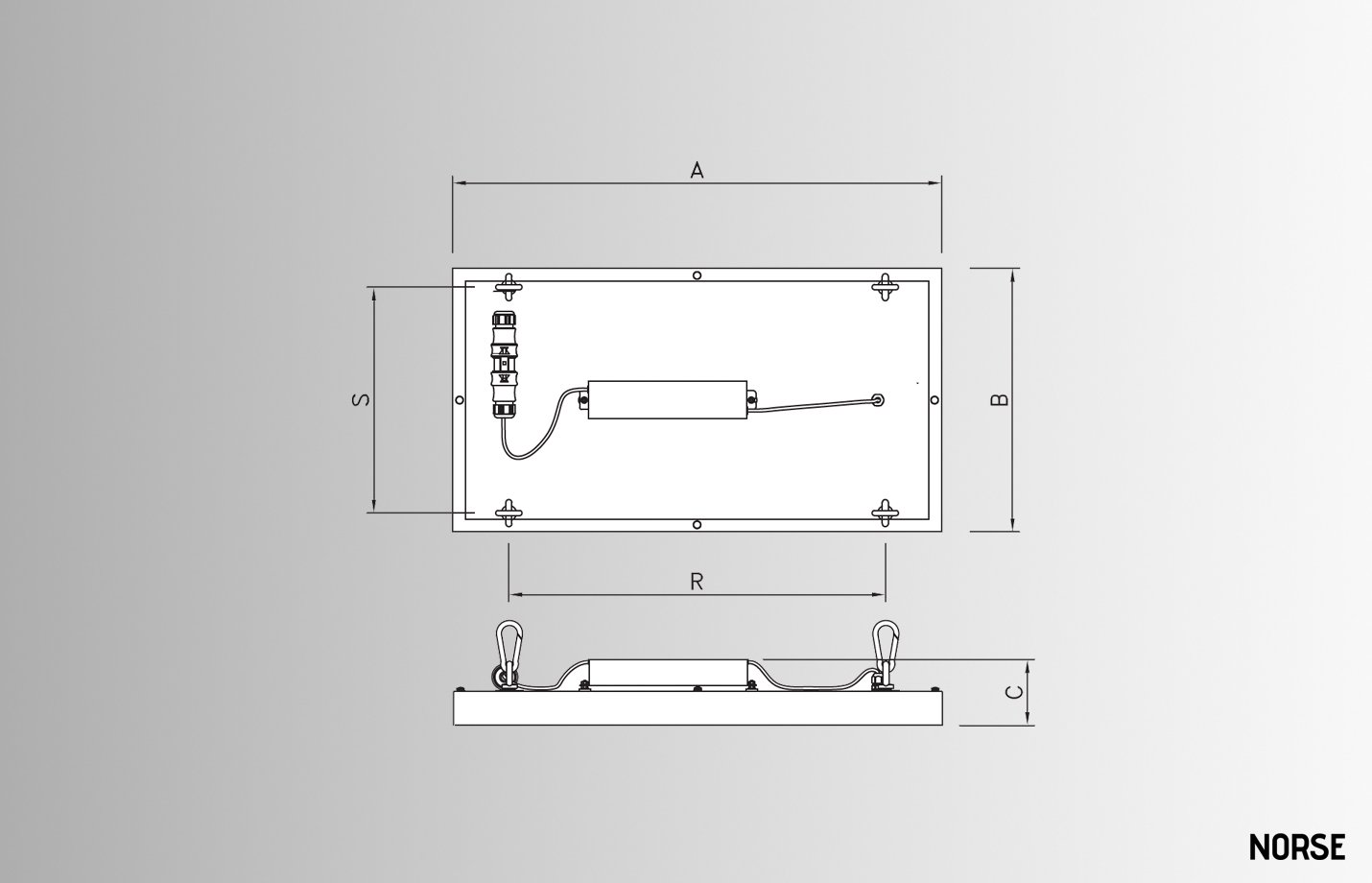

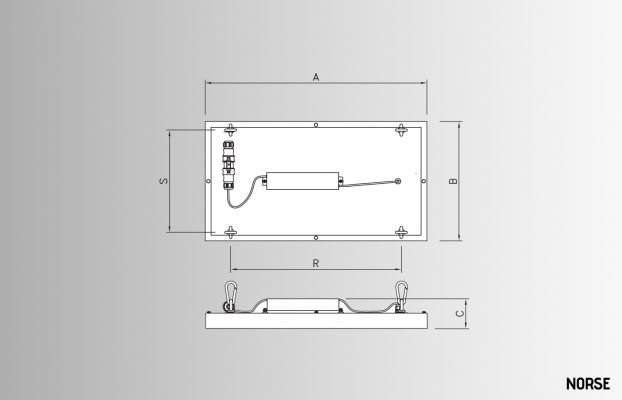

Dimensions (MM): L655XW197XH90MM (M1) | L655XW357XH90MM (M2) | L1224XW197XH90MM (M3) | L1224XW357XH90MM (M4)
Power (W): 49W | 92W | 61W, 92W | 118W, 182W
Color Temperature (K): 3000K, 4000K, 5700K
Installation: Suspended Mounting, Surface Mounting
Cover types: KC – Clear hardened glass (standard), PC – Clear polycarbonate, KN – Microprismatic PMMA, PCN – Microprismatic PC cover
Lamp Type: LED
IP: IP65
Mains voltage: 220-240V
Mains frequency: 50 – 60Hz
Colour rendering (Ra): 80 (90 available)
Beam Angle (Degree): Narrow Beam (35°), Wide Beam (115°)
Option: PIR Sensor
Accessories: Holder for surface installation
Lifetime: 80,000H
Standard Warranty: 2 Years
Extended Warranty: 3 Years

Note: Minimum Order Quantities may apply

Leon Series Highbay Lights Datasheet

Select dimension and number of LED strips:

Select power and beam angle:

Select cover type:

Select Color Temperature (K):

Select Option:

Select Accessories:

Request a price quote

SKU: OL-LEON Category: LED High Bay Lights Tags: Industry Lighting, Warehouses Lighting
